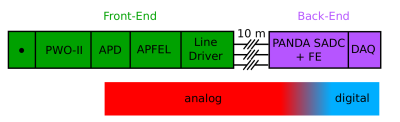

The physics event, marked as a dot creates an electromagnetic shower inside the PbWO_4 crystal and light is produced. This light is detected by APDs (Avalanche Photodiodes). (Two APDs with a detection surface of 7×14 mm^2 are used per crystal.) The APDs create a charge proportional to the detected light. This charge is linearly converted to a voltage pulse by the so called APFEL 1). Before getting to the 10 m distant ADC (analogue to digital converter), the analogue signal needs to be amplified. This is done by the use of the line driver. After the digitisation of the signal a Sampling ADC a feature extraction (FE) is applied and the data aquisition (DAQ) can be started.

1)
ASIC for PANDA Front End Electronics
